QW-AddIn for Autodesk® Inventor® Software
An AddIn for Autodesk® Inventor® Software allows preparing a complete project
for the QuickWave Simulator.
for the QuickWave Simulator.

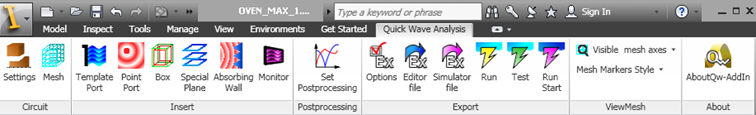

QuickWave Analysis AddIn.
•
user-friendly CAD environment for complex geometry definition
•
easy-to-learn set of tools
•
automatic QuickWave-3D simulation models generation
•
QuickWave-3D user interface
•
EM sources, field monitors, boundary conditions
•
postprocessing tasks: S-parameters, antenna pattern, power available
•
material parameters
•
automatic mesh generation
•
automatic geometry conversion
QuickWave Analysis AddIn - Mesh settings dialogue.
QuickWave Analysis AddIn - Add New Medium dialogue.
QuickWave Analysis AddIn - Port settings dialogue.

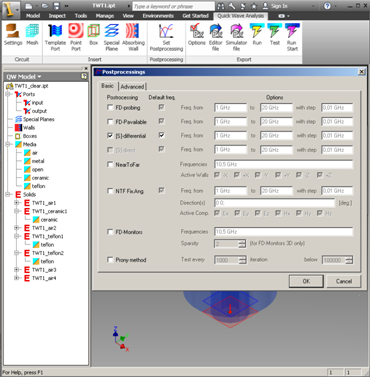

QuickWave Analysis AddIn - Postprocessings dialogue.
QuickWave Analysis AddIn - export progress.
discover accurate EM modelling
